AHC-19 Copy ID to clipboard

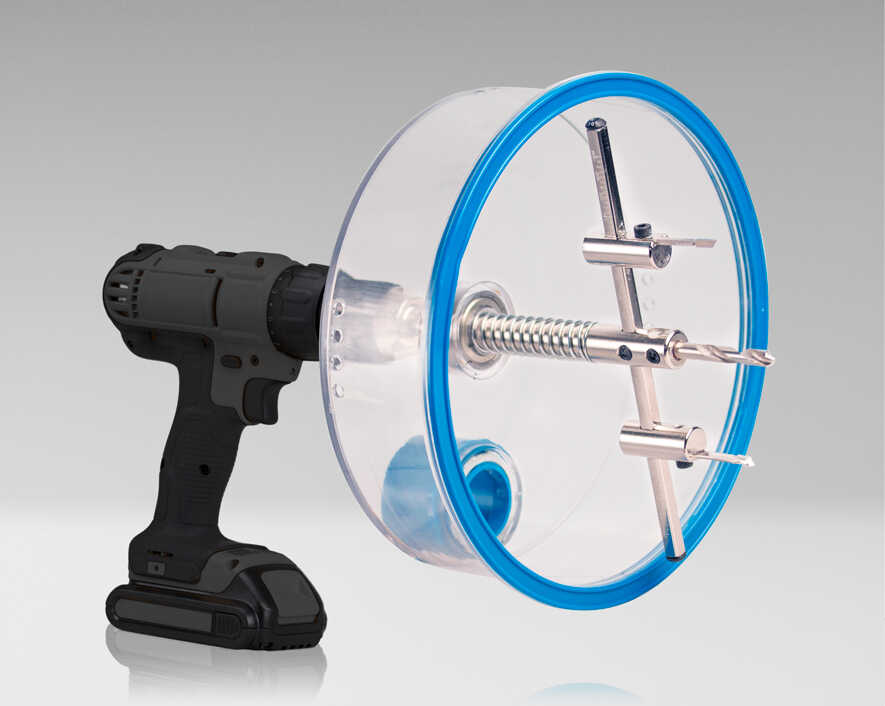

Adjustable Round Hole Cutter w/ Vacuum Port, 8.6”

PRODUCT FEATURES

B

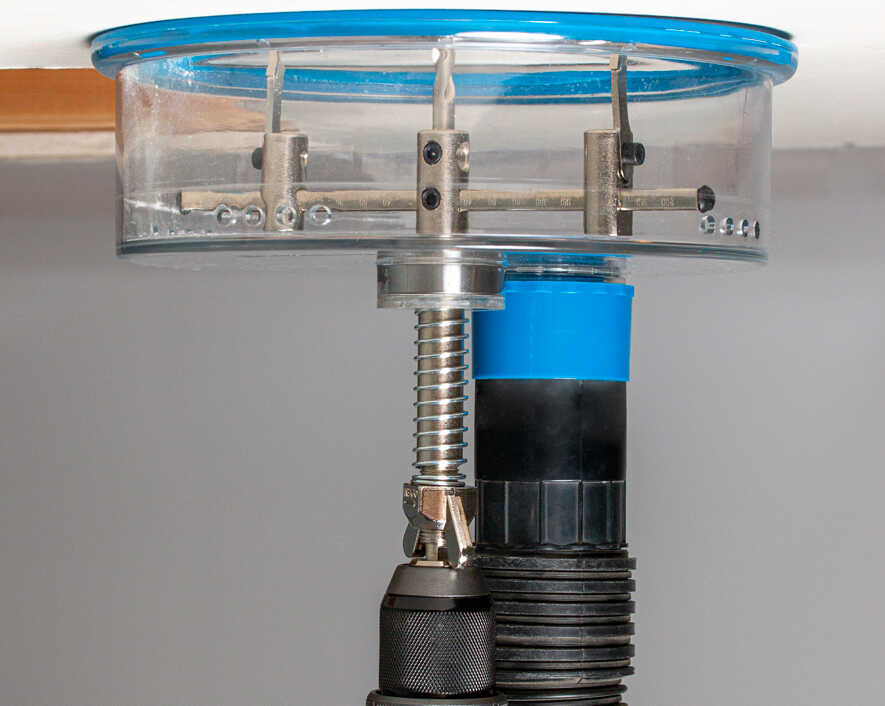

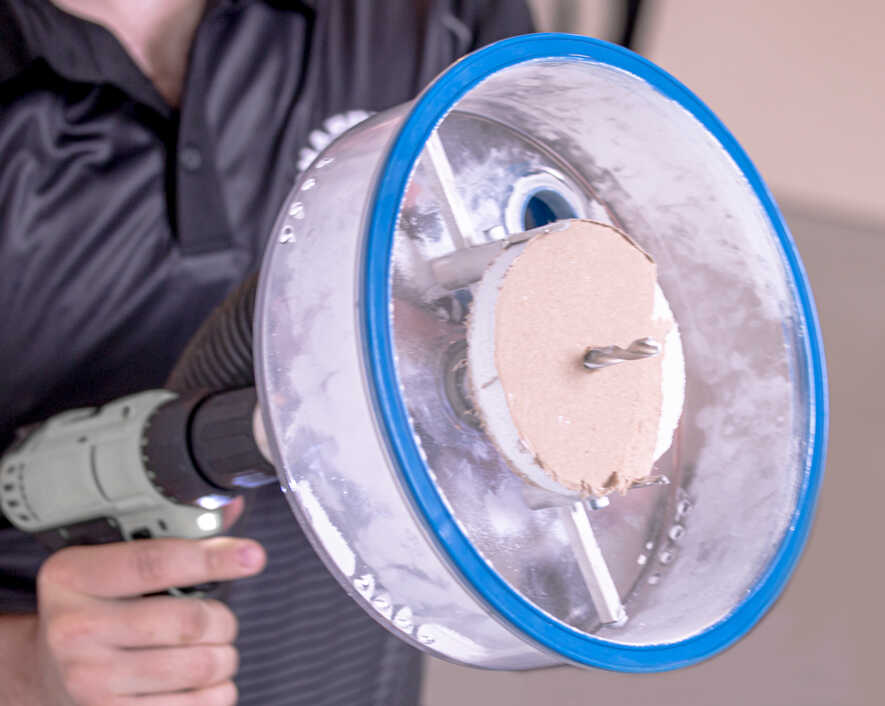

Designed for cutting round holes in ceilings, walls, and floors without making a mess, the AHC-19 is the perfect tool for installing recessed speakers, lighting, or other round objects. This adjustable hole cutter features the following:

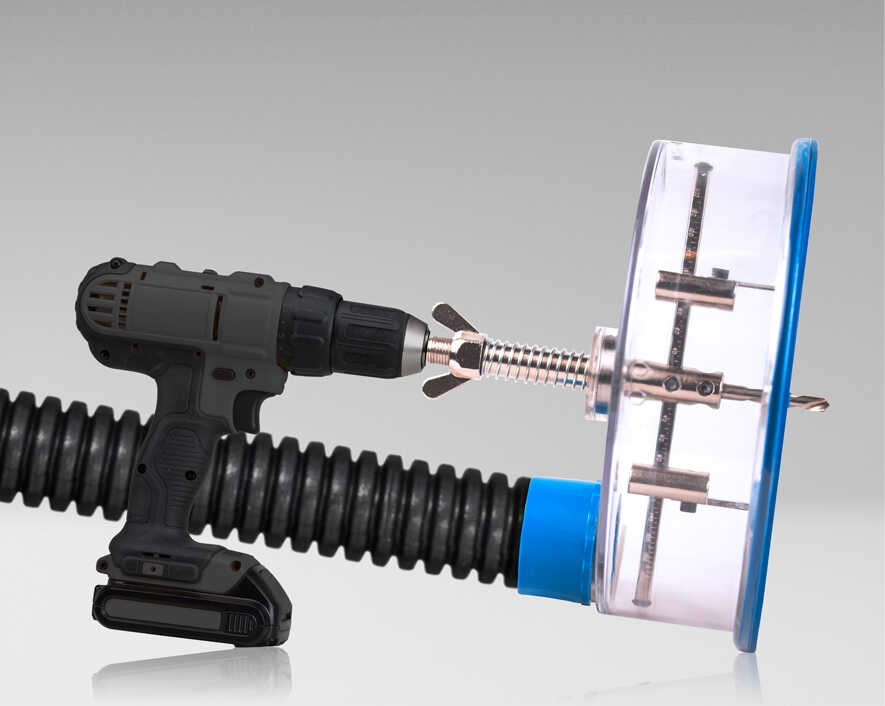

  • Can be hooked up to vacuums, with 2.5" (63.5 mm) diameter hose nozzles, to suck up debris as you go
  • Cuts plywood, sheetrock, plasterboard, and acrylic sheet up to 1 1/16” (27 mm) thick

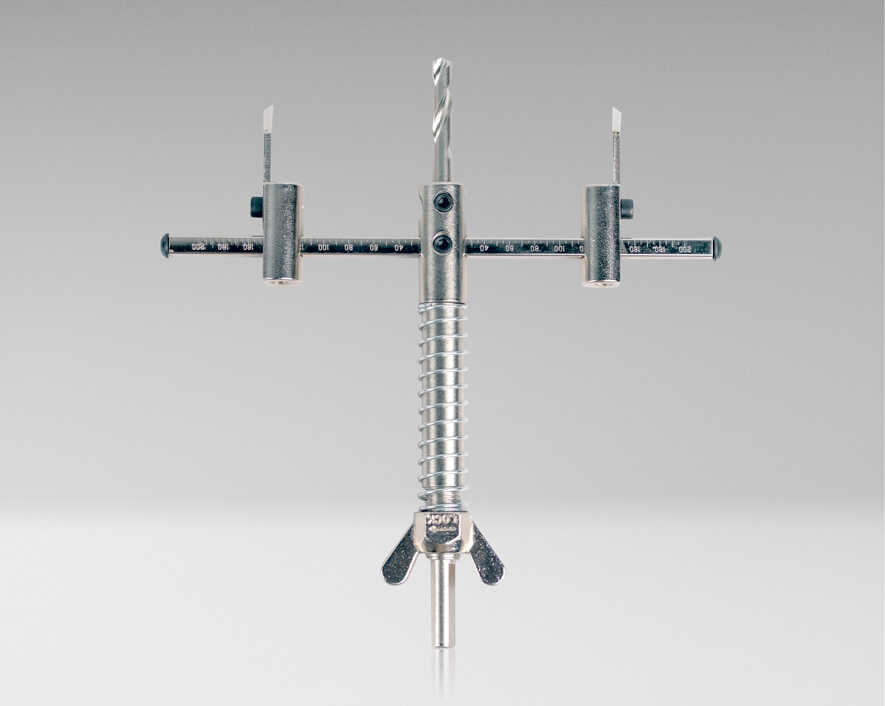

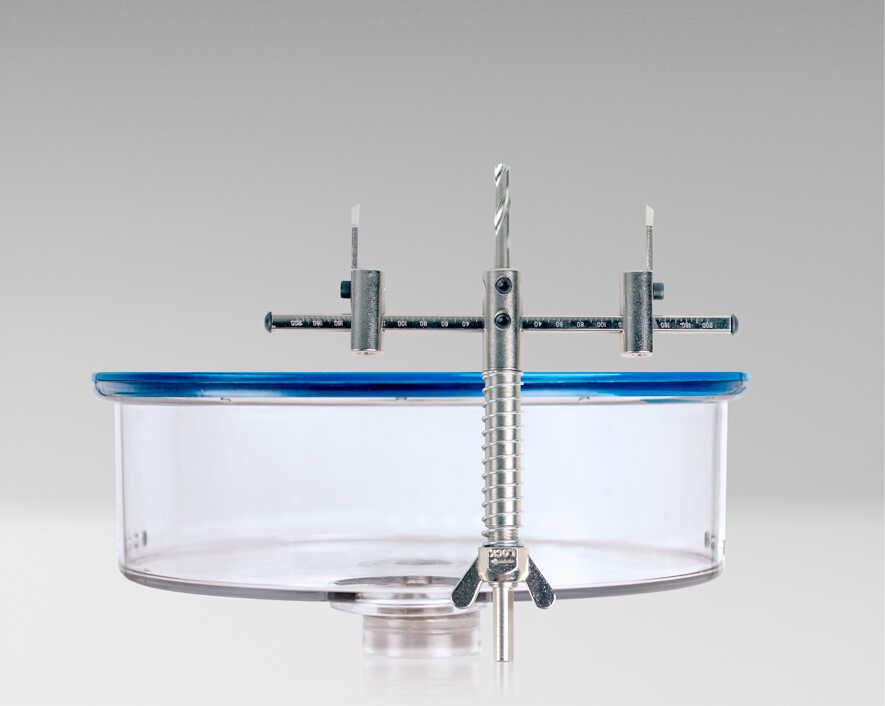

  • Cutting depth is adjustable via hex locknut and compression spring
  • Cuts hole sizes from 2.2" to 8.6” (56 mm - 218.44 mm) in diameter

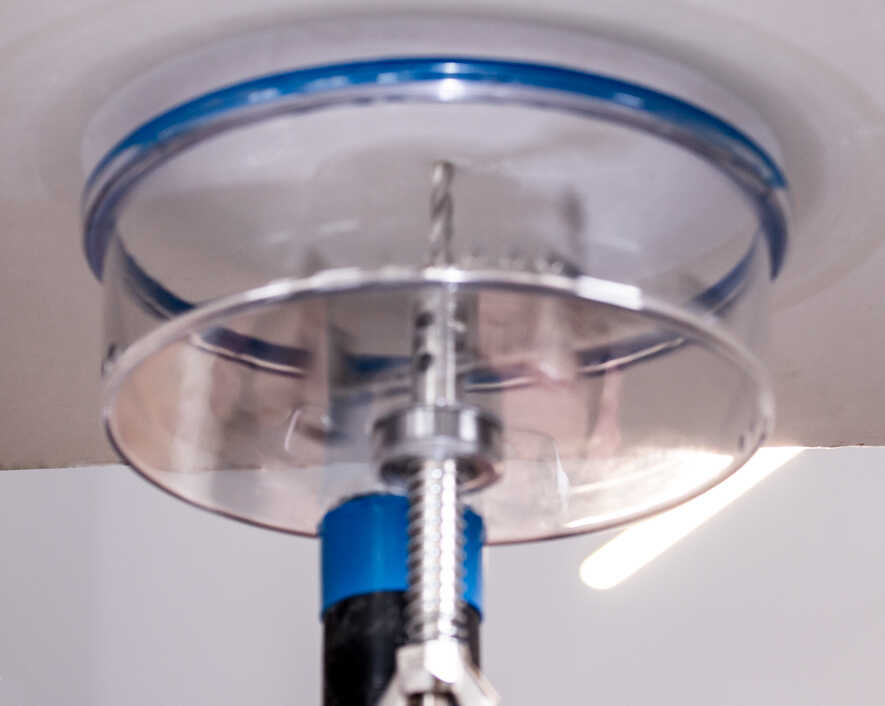

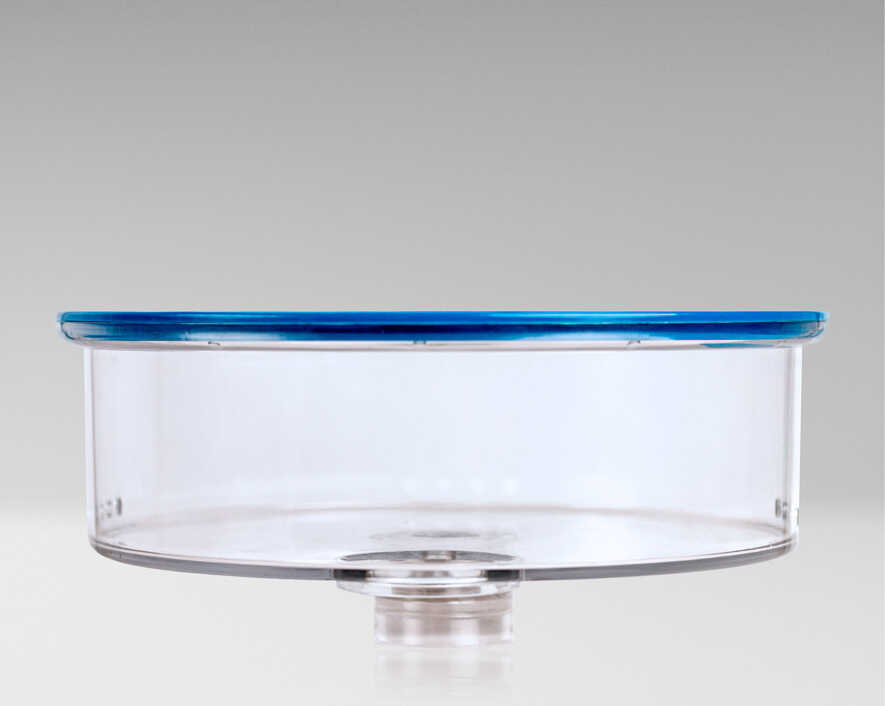

  • Polycarbonate transparent dust shield collects dust and prevents chips from flying into eyes while cutting
  • Rubber gasket provides surface protection against damage, tight seal against flat surfaces, and prevents fallout from debris
  • Compression spring absorbs vibrations while cutting
  • Can be used with any variable-speed drill
  • Power drill and vacuum not included with hole cutter

Product Includes:

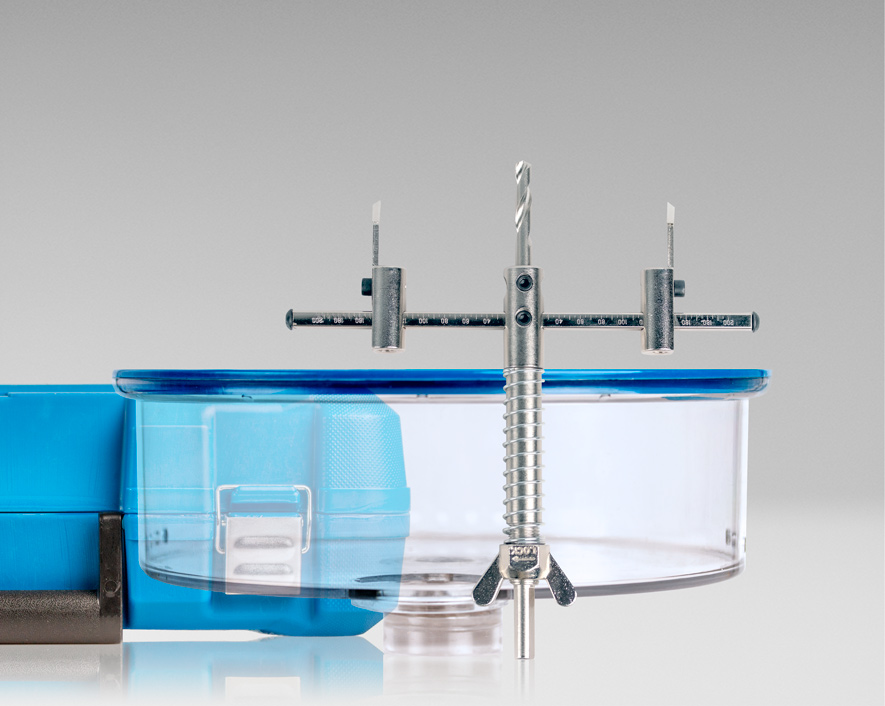

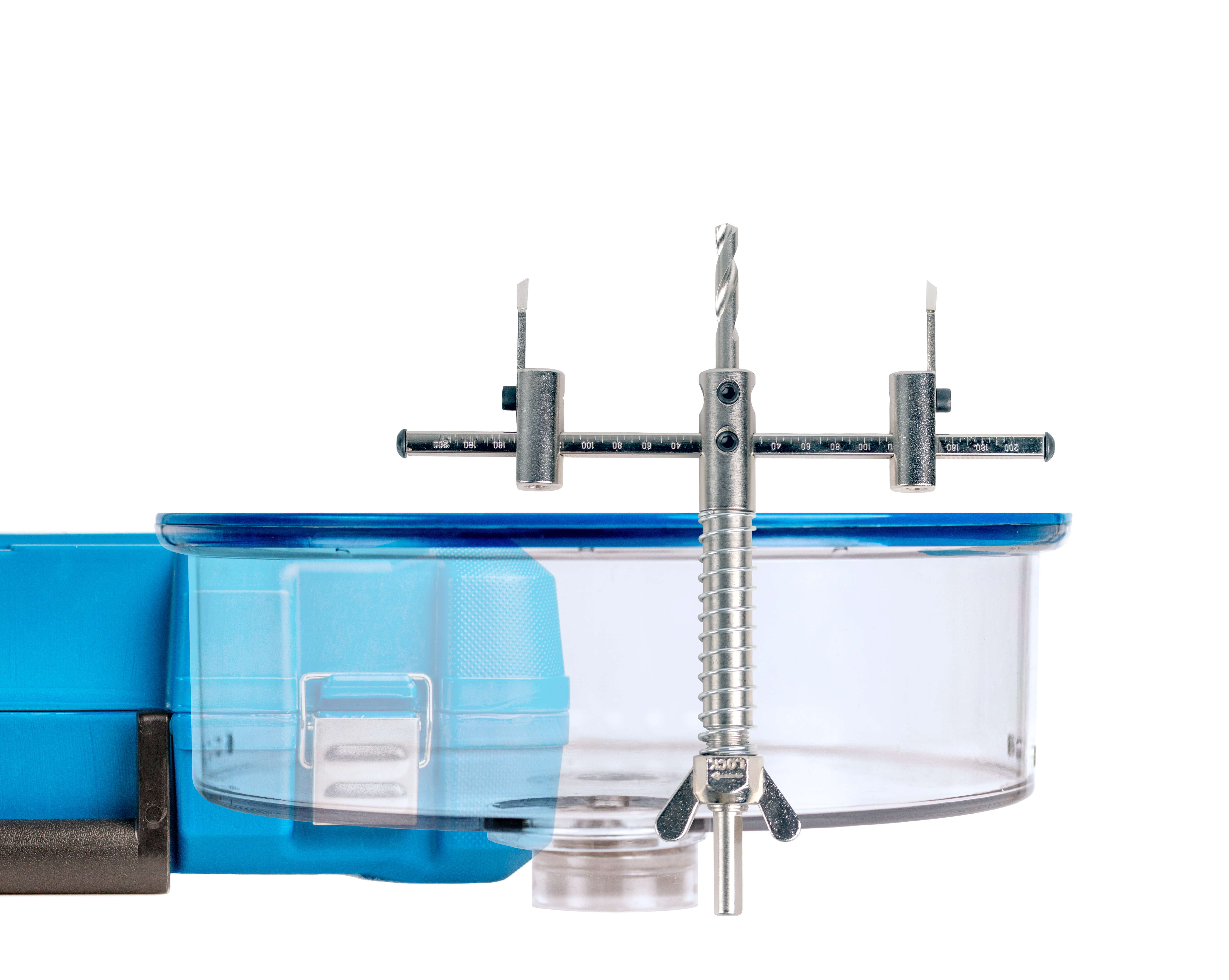

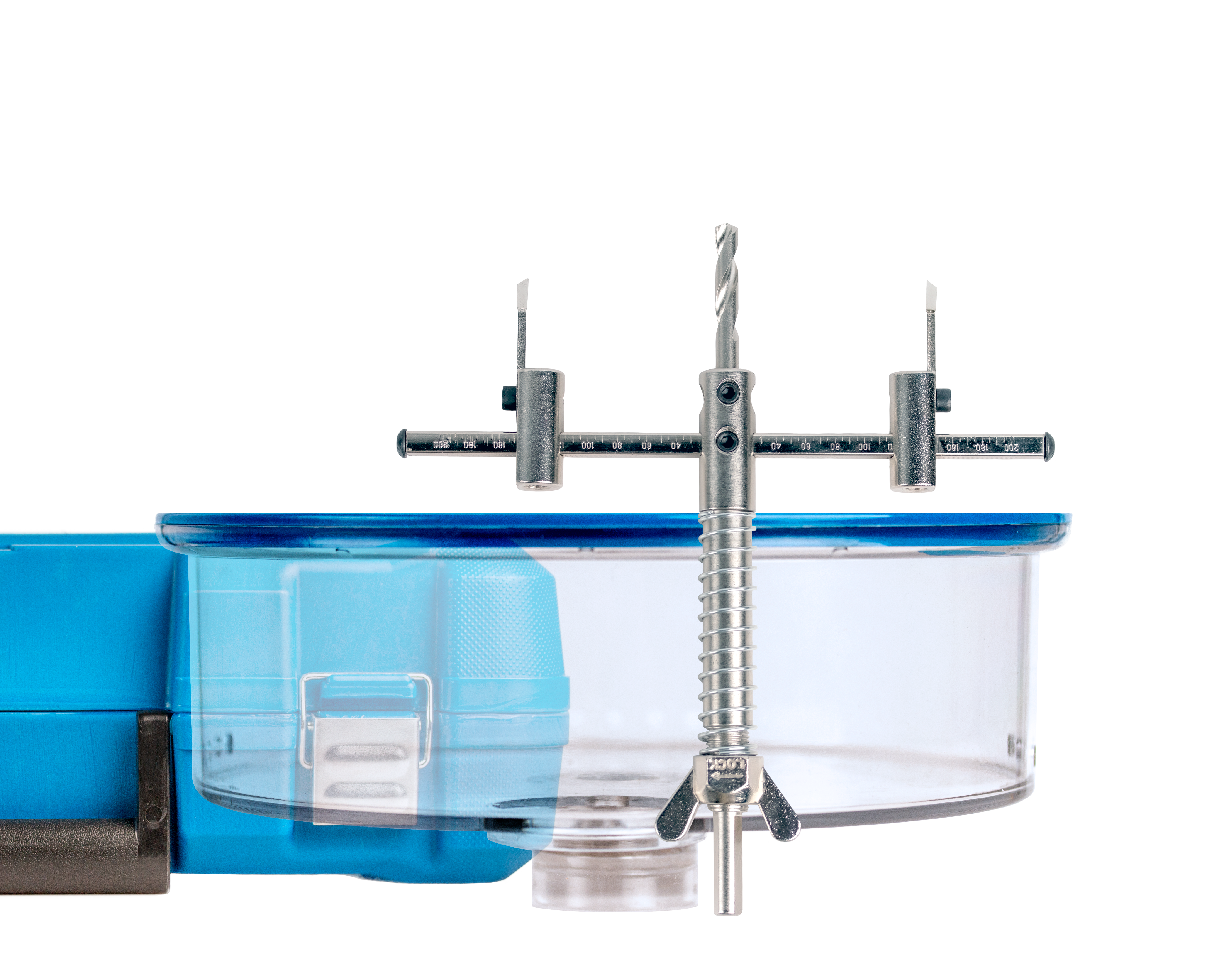

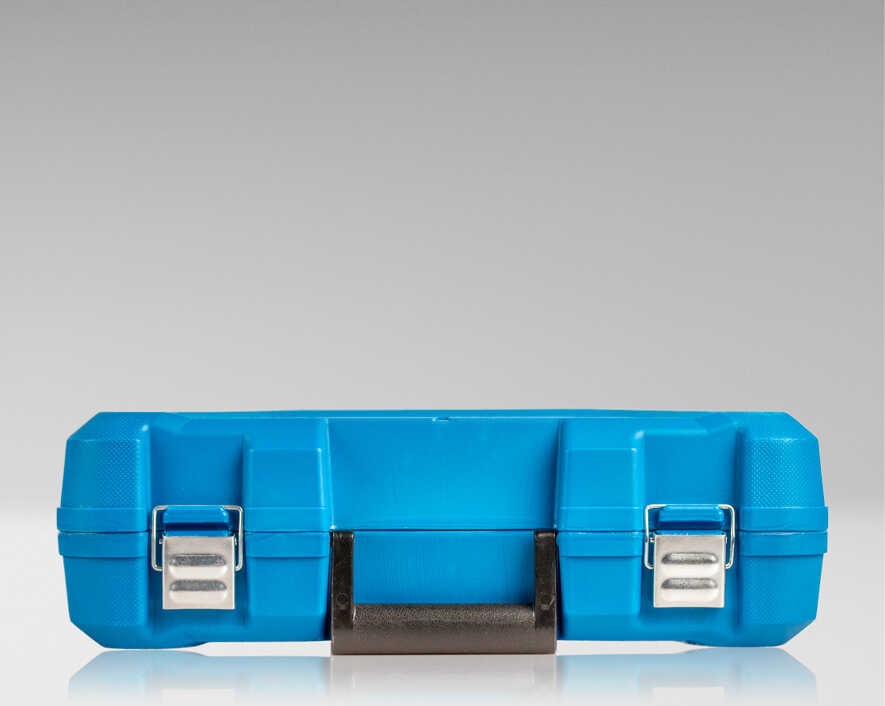

1 Cover, 1 Adjustable Hole Cutter, 1 Vacuum Port, 1 Cap, 1 Nut, 1 Set of Replacement Blades, 1 Hex Key, and a Rugged Carry Case

Learn more about product features Show less

Additional Features

Additional Features: Vacuum Port

Specifications

Cut Type

Round Hole

Works On

Plywood, Sheetrock, Plasterboard, Acrylic Sheet

Cutting Diameter Range

2.2"- 8.6” (56 mm-218.44 mm)

Vacuum Port Size

2.5" (63.5 mm)

Maximum Cutting Depth

1.1" (27 mm)

Bit Diameter

0.236” (6.0 mm)

Bit Length

2.17” (55 mm)

Bit Material

Steel

Hex Chuck Size/Arbor Size

3/8" (9.53 mm)

Dimensions

13" x 4.50" x 13" (33 cm x 33 cm x 11.4 cm)

Product Material Steel
Weight 6.28 lb (2851.12 g)
UPC # 810053350171
